Drill Bits - SDS Plus

OEM imported carbide drill bits designed for SDS Plus and SDS Max systems are ideal for drilling into tough materials like concrete and bricks.

Features:
  • Material: Carbide tips are essential for drilling into hard materials like concrete and bricks. They provide durability and heat resistance, extending the lifespan of the drill bits.
  • Design: The carbide cross tip is brazed onto the drill bit's body, ensuring strong adhesion and efficient transfer of drilling force.
  • Diameter: Available in diameters ranging from 10 mm to 40 mm, catering to various hole size requirements in construction and engineering projects.
  • Length: Drill bit lengths typically range from 400 mm to 2000 mm, allowing for deep drilling into thick concrete or masonry walls.

Specification:

Diameter Length Length Length
12 MM 650 MM **** 1000 MM
14 MM 650 MM **** ****
16 MM 650 MM 800 MM 1000 MM
18 MM 650 MM 800 MM ****
20 MM 650 MM 800 MM 1000 MM
22 MM 650 MM **** ****
25 MM 650 MM 800 MM 1000 MM
28 MM 650 MM **** ****
30 MM 650 MM **** ****
32 MM 650 MM **** ****

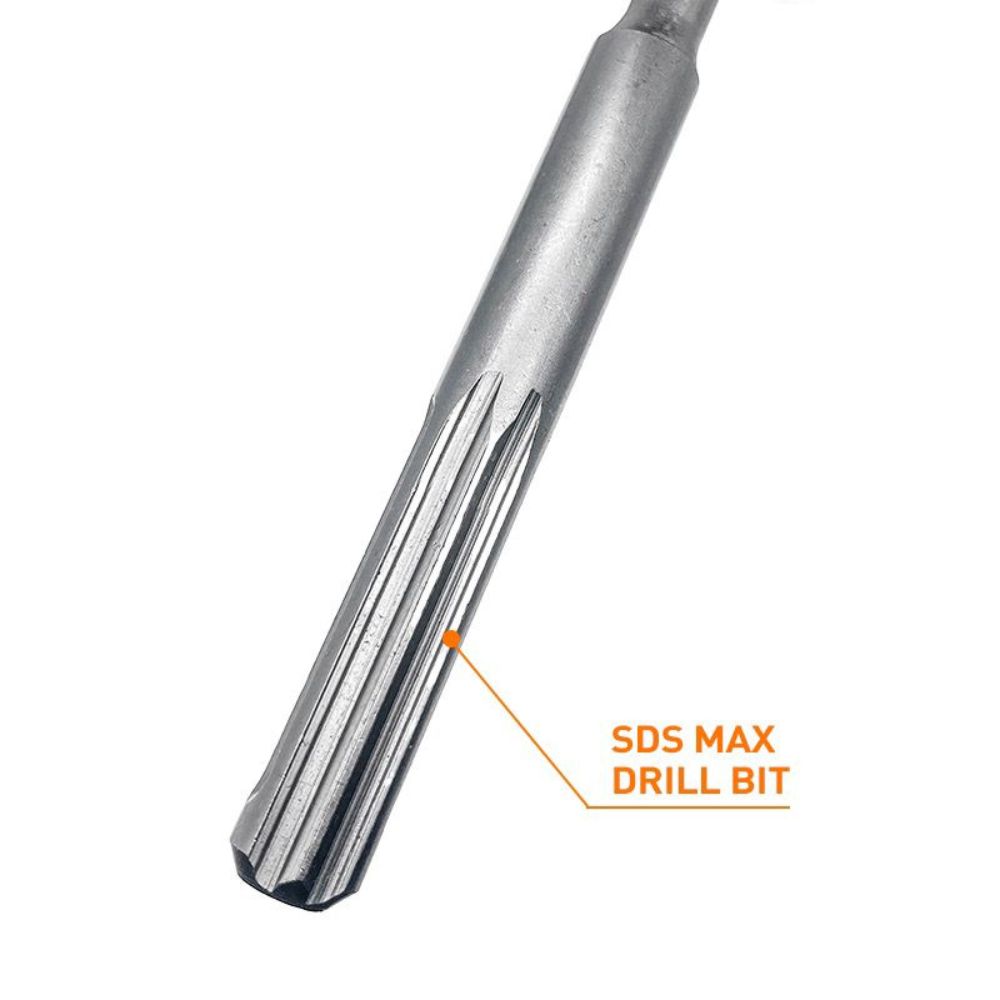

Drill Bits - SDS MAX DRILL BITS

SDS Max drill bits with cross carbide tips are premium-quality tools designed specifically for drilling into hard materials like concrete and brick.

Features:
  • Hard Materials: Specifically designed for drilling into hard concrete, reinforced concrete, and bricks where standard drill bits may struggle.
  • Customized size on order Longer lengths ( 2000 mm or more) are available for deep drilling applications, such as bridge construction or foundation work.

Specification:

Diameter Length Length Length
14 MM 600 MM 800 MM 1000 MM
16 MM 600 MM 800 MM 1000 MM
18 MM 600 MM 800 MM 1000 MM
20 MM 600 MM 800 MM 1000 MM
22 MM 600 MM 800 MM ****
25 MM 600 MM 800 MM ****
30 MM 600 MM **** ****
32 MM 600 MM 800 MM 1000 MM
35 MM 600 MM 800 MM ****
38 MM 600 MM 800 MM 1000 MM
40 MM 600 MM 800 MM 1000 MM
45 MM 600 MM **** ****
